Springboot integrated rocketmq q quick start demo

一、rocketmq introduce

RocketMQ is a pure java、distribution、queue model open source messaging middleware, it is an queue model messaging middleware is developed by alibaba with reference to the characteristic. of kafka. it was later open source to Apache Foundation and became Apache’s top open source project. it. has high performance high reliability 、high real-time and distributed characteristic

二、rocketmq environment setup

use docker-compose to build，the specific config as follower:

version: '3'
services:
  # rocket mq name server
  rmqnamesrv:
    image: apache/rocketmq:4.9.6
    restart: always
    container_name: rocket-server
      # environment:
      #   JAVA_OPT_EXT: "-server -Xms64m -Xmx64m -Xmn64m"
      # volumes:
    # - ../volumes/data/rocket/server/logs:/home/rocketmq/logs
    networks:
      - rocketmq
    ports:
      - 9876:9876
    command: sh mqnamesrv
  # rocket mq broker
  rmqbroker:
    image: apache/rocketmq:4.9.6
    restart: always
    container_name: rocket-broker
    volumes:
      # - ../volumes/data/rocket/broker/logs:/home/rocketmq/logs
      # - ../volumes/data/rocket/broker/store:/home/rocketmq/store
      - ./config/broker.conf:/opt/rocketmq-4.9.6/conf/broker.conf
    environment:
      - NAMESRV_ADDR=rmqnamesrv:9876
      # - JAVA_OPTS:=-Duser.home=/opt
      - JAVA_OPT_EXT=-server -Xms64m -Xmx64m -Xmn64m
    depends_on:
      - rmqnamesrv
    networks:
      - rocketmq
    ports:
      - 10909:10909
      - 10911:10911
    command: sh mqbroker -c /opt/rocketmq-4.9.6/conf/broker.conf
  rmqdashboard:
    image: apacherocketmq/rocketmq-dashboard:1.0.0
    restart: always
    container_name: rocket-dashboard
    environment:
      - JAVA_OPTS=-Drocketmq.config.namesrvAddr=rmqnamesrv:9876 -Dserver.port=8180 -Drocketmq.config.isVIPChannel=false
      # - JAVA_OPT_EXT=-Xms128m -Xmx128m -Xmn128m
    depends_on:
      - rmqnamesrv
    networks:
      - rocketmq
    ports:
      - 8180:8180
networks:
  rocketmq:
    driver: bridge
  stack:
    driver: bridge

run docker-compose

docker-compose -f docker-compose-rocketmq.yml -p rocketmq up -d
notice：modify xx/rocketmq/rocketmq_broker/conf/broker.conf brokerIP1 is current local hostIP

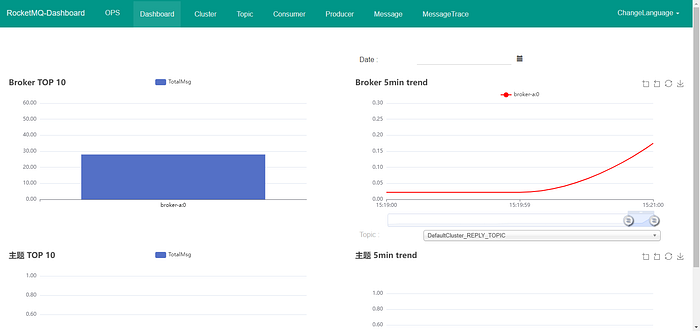

access url：http://ip:8180

三、code project

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springboot-demo</artifactId>
        <groupId>com.et</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
<artifactId>rocketmq</artifactId>
    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.apache.rocketmq</groupId>
            <artifactId>rocketmq-spring-boot-starter</artifactId>
            <version>2.1.1</version>
        </dependency>
        <dependency>
            <groupId>org.apache.rocketmq</groupId>
            <artifactId>rocketmq-client</artifactId>
            <version>4.8.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.rocketmq</groupId>
            <artifactId>rocketmq-common</artifactId>
            <version>4.8.0</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

entity

package com.et59.rocketmq.entity;
/**
 * @author liuhaihua
 * @version 1.0
 * @ClassName Person
 * @Description todo
 * @date 2023年12月29日 9:52
 */
public class Person {
    private String name;
    private int age;
    public String getName() {
        return name;
    }
    public void setName(String name) {
        this.name = name;
    }
    public int getAge() {
        return age;
    }
    public void setAge(int age) {
        this.age = age;
    }
}

listener

package com.et59.rocketmq.listener;
import com.et59.rocketmq.entity.Person;
import org.apache.rocketmq.spring.annotation.RocketMQMessageListener;
import org.apache.rocketmq.spring.core.RocketMQListener;
import org.springframework.stereotype.Component;
/**
 * @Author: heyuhua
 * @Date: 2021/1/8 15:55
 */
@Component
@RocketMQMessageListener(consumerGroup = "${rocketmq.producer.groupName}", topic = "PERSON_ADD")
public class PersonMqListener implements RocketMQListener<Person> {
    @Override
    public void onMessage(Person person) {
        System.out.println("receiver message，start consumer..name:" + person.getName() + ",age:" + person.getAge());
    }
}

util

package com.et59.rocketmq.util;
import org.apache.rocketmq.client.producer.SendCallback;
import org.apache.rocketmq.client.producer.SendResult;
import org.apache.rocketmq.spring.core.RocketMQTemplate;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.messaging.Message;
import org.springframework.stereotype.Component;
import javax.annotation.PostConstruct;
import javax.annotation.PreDestroy;
/**
 * RocketMq asistant
 *
 * @Author: heyuhua
 * @Date: 2020/1/8 10:03
 */
@Component
public class RocketMqHelper {
    /**
     * 日志
     */
    private static final Logger LOG = LoggerFactory.getLogger(RocketMqHelper.class);
    /**
     * rocketmq template
     */
    @Autowired
    private RocketMQTemplate rocketMQTemplate;
    @PostConstruct
    public void init() {
        LOG.info("---RocketMq助手初始化---");
    }
    /**
     *send async message
     *
     * @param topic
     * @param message
     */
    public void asyncSend(Enum topic, Message<?> message) {
        asyncSend(topic.name(), message, getDefaultSendCallBack());
    }

    /**
     * send async message
     *
     * @param topic
     * @param message
     * @param sendCallback
     */
    public void asyncSend(Enum topic, Message<?> message, SendCallback sendCallback) {
        asyncSend(topic.name(), message, sendCallback);
    }
    /**
     * send async message
     *
     * @param topic
     * @param message
     */
    public void asyncSend(String topic, Message<?> message) {
        rocketMQTemplate.asyncSend(topic, message, getDefaultSendCallBack());
    }
    /**
     * send async message
     *
     * @param topic
     * @param message
     * @param sendCallback
     */
    public void asyncSend(String topic, Message<?> message, SendCallback sendCallback) {
        rocketMQTemplate.asyncSend(topic, message, sendCallback);
    }
    /**
     * send async message
     *
     * @param topic
     * @param message
     * @param sendCallback
     * @param timeout
     */
    public void asyncSend(String topic, Message<?> message, SendCallback sendCallback, long timeout) {
        rocketMQTemplate.asyncSend(topic, message, sendCallback, timeout);
    }
    /**
     * send async message
     *
     * @param topic
     * @param message
     * @param sendCallback
     * @param timeout
     * @param delayLevel
     */
    public void asyncSend(String topic, Message<?> message, SendCallback sendCallback, long timeout, int delayLevel) {
        rocketMQTemplate.asyncSend(topic, message, sendCallback, timeout, delayLevel);
    }
    /**
     * send sequntia message
     *
     * @param message
     * @param topic
     * @param hashKey
     */
    public void syncSendOrderly(Enum topic, Message<?> message, String hashKey) {
        syncSendOrderly(topic.name(), message, hashKey);
    }

    /**
     * send sequntia message
     *
     * @param message
     * @param topic
     * @param hashKey
     */
    public void syncSendOrderly(String topic, Message<?> message, String hashKey) {
        LOG.info("send sequntia message，topic:" + topic + ",hashKey:" + hashKey);
        rocketMQTemplate.syncSendOrderly(topic, message, hashKey);
    }
    /**
     * send sequntia message
     *
     * @param message
     * @param topic
     * @param hashKey
     * @param timeout
     */
    public void syncSendOrderly(String topic, Message<?> message, String hashKey, long timeout) {
        LOG.info("send sequntia message，topic:" + topic + ",hashKey:" + hashKey + ",timeout:" + timeout);
        rocketMQTemplate.syncSendOrderly(topic, message, hashKey, timeout);
    }
    /**
     * default CallBack function
     *
     * @return
     */
    private SendCallback getDefaultSendCallBack() {
        return new SendCallback() {
            @Override
            public void onSuccess(SendResult sendResult) {
                LOG.info("---send MQ success---");
            }
            @Override
            public void onException(Throwable throwable) {
                throwable.printStackTrace();
                LOG.error("---send MQ fail---"+throwable.getMessage(), throwable.getMessage());
            }
        };
    }

    @PreDestroy
    public void destroy() {
        LOG.info("---RocketMq助手注销---");
    }
}

config file(application.yaml)

server:
  port: 8088
rocketmq:
  name-server: 10.11.68.77:9876
  producer:
    isOnOff: on
    group: hyh-rocketmq-group
    groupName: hyh-rocketmq-group
    namesrvAddr: 10.11.68.77:9876
    maxMessageSize: 4096
    sendMsgTimeout: 3000
    retryTimesWhenSendFailed: 2

DemoApplication.java

package com.et59.rocketmq;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
public class DemoApplication {
   public static void main(String[] args) {
      SpringApplication.run(DemoApplication.class, args);
   }
}

code repository

• https://github.com/Harries/springboot-demo

四、test

package com.et59.rocketmq;
import com.et59.rocketmq.entity.Person;
import com.et59.rocketmq.util.RocketMqHelper;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.messaging.support.MessageBuilder;
import org.springframework.test.context.junit4.SpringRunner;
@RunWith(SpringRunner.class)
@SpringBootTest
public class MQTests {
   @Autowired
   private RocketMqHelper rocketMqHelper;
   @Test
   public void testProducter() throws InterruptedException {
      for(int i=0;i<1000000;i++){
         Person person = new Person();
         person.setName("heyuhua");
         person.setAge(25);
         rocketMqHelper.asyncSend("PERSON_ADD", MessageBuilder.withPayload(person).build());
         Thread.sleep(1000);
      }
   }
}

the result

2024-02-02 15:20:27.101 INFO 11188 --- [ublicExecutor_3] com.et59.rocketmq.util.RocketMqHelper : ---send MQ success---
2024-02-02 15:20:28.116 INFO 11188 --- [ublicExecutor_4] com.et59.rocketmq.util.RocketMqHelper : ---send MQ success---
2024-02-02 15:20:29.130 INFO 11188 --- [ublicExecutor_5] com.et59.rocketmq.util.RocketMqHelper : ---send MQ success---
2024-02-02 15:20:30.131 INFO 11188 --- [ublicExecutor_7] com.et59.rocketmq.util.RocketMqHelper : ---send MQ success---
2024-02-02 15:20:31.142 INFO 11188 --- [ublicExecutor_8] com.et59.rocketmq.util.RocketMqHelper : ---send MQ success---
2024-02-02 15:20:32.156 INFO 11188 --- [ublicExecutor_9] com.et59.rocketmq.util.RocketMqHelper : ---send MQ success---
2024-02-02 15:20:33.167 INFO 11188 --- [blicExecutor_10] com.et59.rocketmq.util.RocketMqHelper : ---send MQ success---
receive messages，start to message..name:heyuhua,age:25
receive messages，start to message..name:heyuhua,age:25
receive messages，start to message..name:heyuhua,age:25
receive messages，start to message..name:heyuhua,age:25
receive messages，start to message..name:heyuhua,age:25
2024-02-02 15:20:34.182 INFO 11188 --- [ublicExecutor_3] com.et59.rocketmq.util.RocketMqHelper : ---send MQ success---
receive messages，start to message..name:heyuhua,age:25
receive messages，start to message..name:heyuhua,age:25
receive messages，start to message..name:heyuhua,age:25
receive messages，start to message..name:heyuhua,age:25
receive messages，start to message..name:heyuhua,age:25
receive messages，start to message..name:heyuhua,age:25

五、引用

• https://rocketmq.apache.org/
• http://www.liuhaihua.cn/archives/710205.html
